Swivel Lifting Point - Conveying & Hoisting Solutions

Swivel Lifting Point (Oblong) Eye Bolt

Descriptive alt text
$0
$58.00 - $331.00
$63.00
$58.00 - $331.00
$63.00
Availability:
Out of stock
Availability:
In stock
Availability:
Only 3 left!
Availability:
Out of stock
Availability:
In stock
Availability:
Out of stock
Availability:
In stock
Availability:
Out of stock
Product Code: 605110
Please Select Variation: M10/0.45T-0.9T
 More payment options

Online Only

Conveying & Hoisting Solutions does not have a storefront open to the general public. However, you may select the Click & Collect option at checkout. We'll notify you when its ready for pickup
Learn more

  • Description

  • Specifications

  • Key Points

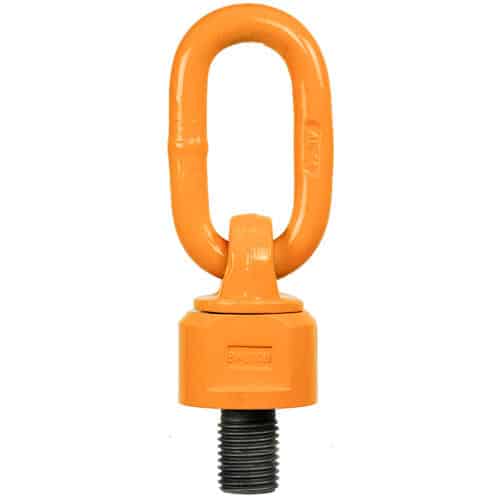

The Swivel Lifting Point is a bolt that can be used to rotate under load. It is made from G80 alloy steel and has a yellow painted finish.

The Swivel Lifting Point is a versatile and reliable way to lift loads in any orientation. This product is made from high-strength G80 alloy steel and features a yellow painted finish. It also has an oval link for added strength, and is available in metric thread sizes from 8mm to 36mm.

The Swivel Lifting Point is ideal for use in dynamic lifting applications, due to its equally important ability to rotate under load. Plus, this product is perfect for those who need a reliable and versatile solution for lifting heavy loads.

  • Made from G80 alloy steel with a yellow painted finish, manufactured with an oval link, and available in metric thread sizes from 8mm to 36mm.
  • Marked with working load limit in tonne, nominal size in millimetre, quality mark and supplier identification. Proof tested to 1.25 x Working load limit.
  • Test certificates are available upon request.

Made from G80 alloy steel, the Swivel Lifting Point has a yellow finish for visibility. Additionally, it is available in metric thread sizes from 8mm to 36mm. The oval link design gives it added strength and durability, making it perfect for heavy-duty lifting applications.

Thread Pitch



Details
Product Code
Product Code
This unique code helps you pinpoint the exact item you need in our inventory
605108
Weight
Weight
The measurement that shows how heavy the product is. Useful to know for handling, shipping, and setup purposes.
0.41 kg
Material
Material
The primary substance used to make the product. Knowing this can help you understand its durability, care requirements, and environmental impact
Grade 80 High Tensile Alloy Steel
Finish
Finish
Material: Identifies what the product is made from. This info helps you gauge its look, feel, and longevity.
Heavy Duty Powder Coat
Quantity
Quantity
A list of all the items included in the package
One Item
Colour
Colour
Indicates the main visual appearance or finish of the product, offering insights into its design and suitability for your project or environment
Orange
Thread Type
Thread Type
Distinguishes the thread profiles used in our product
Metric
Thread Pitch
Thread Pitch
Thread Pitch: Refers to the distance between adjacent threads on a screw or bolt, measured in millimeters for metric threads and in threads per inch (TPI) for imperial threads. A crucial dimension for ensuring compatibility and proper fit between threaded components. Essential for determining the thread's coarseness or fineness, affecting both the ease of assembly and the strength of the connection
1.25mm
Compliance
Conformity
Conformity
Indicates the extent to which a product or component adheres to established standards and regulations, including Australian and international norms. This encompasses aspects like design, materials, performance, and safety. Conformity ensures that the product is suitable for its intended use and meets the quality and safety requirements necessary for its application. Regularly assessing conformity is essential for maintaining compliance and reliability
AS/NZS 2318, EN 818-4
Markings
Markings
This refers to the specific identifiers and symbols printed or engraved on the product. These may include the model number, serial number, safety symbols, and compliance marks that ensure the product meets industry standards and regulations. Check these markings for important information about the product's origin, certification, and proper use.
Batch Number, Grade, Manufacturer, Nominal Size in Millimetre, WLL in tonne
Proof Tested
Proof Tested
This indicates that the product has undergone rigorous testing to confirm its durability and capability to withstand the specified load or stress without failure. This process ensures the product's reliability and safety for its intended use.
1.25 x WLL
Test Certificate
Test Certificate
A Test Certificate is an official document provided by a certified testing agency that verifies the product has been rigorously tested and meets all applicable standards and quality requirements. It ensures the product's reliability, safety, and compliance with industry regulations. This certificate is crucial for ensuring confidence in the use and durability of the product
Included
Brand Information
Brand
Austlift or Sunny Lifting, based on availability
Documents
Specification Sheet
Download
