Kernmantle Rope 12mm Anchor line complete with Rope Grab - Conveying & Hoisting Solutions

Kernmantle Rope 12mm Anchor line complete with Rope Grab

Descriptive alt text
$0
$139.00 - $242.00
$142.00
$139.00 - $242.00
$142.00
Availability:
Out of stock
Availability:
In stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
In stock
Availability:
In stock
Product Code: 915305
Length: 5m
 More payment options

Online Only

Conveying & Hoisting Solutions does not have a storefront open to the general public. However, you may select the Click & Collect option at checkout. We'll notify you when its ready for pickup
Learn more

  • Description

  • Specifications

  • Key Points

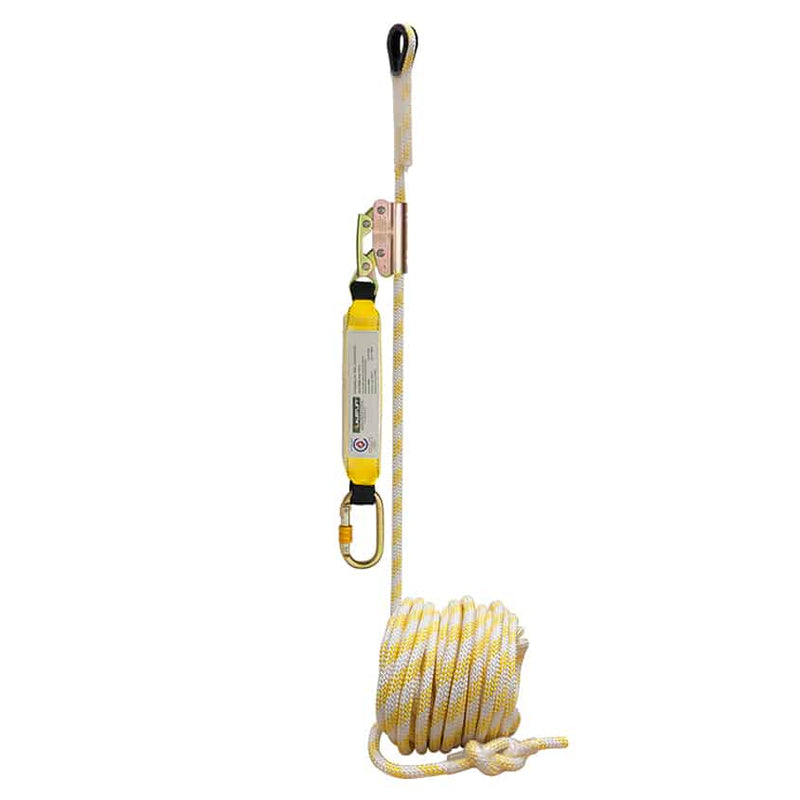

In this system, the rope grab is constructed of high strength steel and works on a 12mm diameter kernmantle rope anchorage line, incorporated permanently on the anchorage line, and comes with an energy-absorbing element.

It is not detachable from the rope and this gives an advantage that the worker does not lose the device when the equipment is not in use. This system is an ideal fall restraint device for use while working on platforms and roofs.

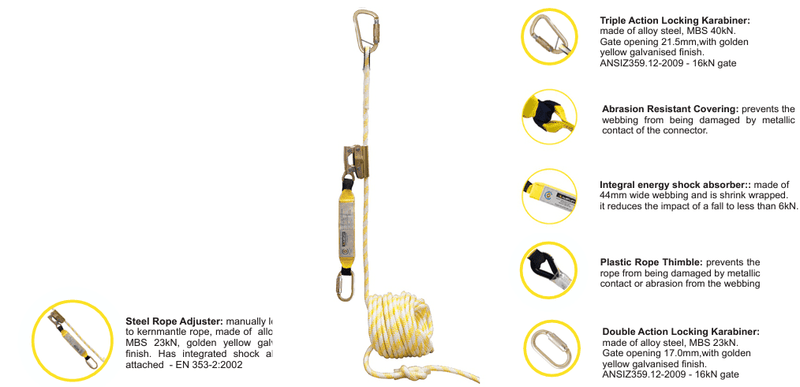

Features

  • 12mm diameter kernmantle rope
  • Available in 2M, 15M, 20M, 25M
  • Steel rope grab: 15kN minimum breaking strength
  • Steel screw-locking karabiner: 18mm gate opening, 25kN minimum breaking strength
  • Conforms to EN 353-2:2002

SUITABLE FOR: Use in Fall Restraint applications particularly whilst working on platforms and rooftops - static line

CERTIFICATION: Learn more


Details
Product Code
Product Code
This unique code helps you pinpoint the exact item you need in our inventory
915848
Weight
Weight
The measurement that shows how heavy the product is. Useful to know for handling, shipping, and setup purposes.
3.0 kg
Quantity
Quantity
A list of all the items included in the package
One Item
Performance
Min. Breaking Strength
Min. Breaking Strength
This denotes the minimum force required to cause failure or breakage in a material or component, such as cables, ropes, or straps. Expressed in kilograms (kg), it serves as a critical safety indicator, ensuring that materials are selected and used within their strength limits. Understanding this value is key to preventing accidents and ensuring the integrity of lifting or securing operations
Karabiner 25kN, Rope Grab 15kN
Min. User Capacity
Min. User Capacity
Refers to the least amount of weight or load necessary for optimal performance and safety. It's crucial to ensure that the applied load meets or exceeds this minimum. This ensures the integrity of the operation and the safety of users, as operating below this capacity may compromise both efficiency and safety.
60 kg
Max. User Capacity
Max. User Capacity
Refers to the maximum load or weight that can be safely applied or supported. This value is crucial to prevent overloading and ensure safety. It is important to never exceed this limit to maintain operational integrity and avoid the risk of accidents or equipment damage
100 kg
Compliance
Conformity
Conformity
Indicates the extent to which a product or component adheres to established standards and regulations, including Australian and international norms. This encompasses aspects like design, materials, performance, and safety. Conformity ensures that the product is suitable for its intended use and meets the quality and safety requirements necessary for its application. Regularly assessing conformity is essential for maintaining compliance and reliability
AS/NZS 1891.5:2020, EN 353-2:2002
Test Certificate
Test Certificate
A Test Certificate is an official document provided by a certified testing agency that verifies the product has been rigorously tested and meets all applicable standards and quality requirements. It ensures the product's reliability, safety, and compliance with industry regulations. This certificate is crucial for ensuring confidence in the use and durability of the product
Available on request
Brand Information
Brand
Austlift
Documents
Specification Sheet
Download
Download
Download
