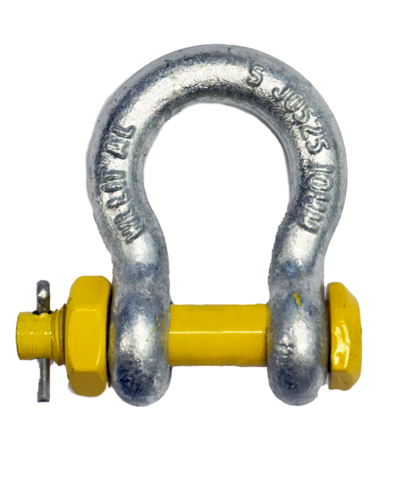

Shackle Grade 'S' Bow Safety Galvanised

Descriptive alt text
Original price $0
Original price $4.00 - Original price $19.00
Original price
Current price $4.00
$4.00 - $19.00
Current price $4.00
Availability:
Only 1 left!
Availability:
Only 1 left!
Availability:
Out of stock
Availability:
Only 3 left!
Availability:
Out of stock
Availability:
Out of stock
Product Code: 503510
Size: 10mm 1t
 More payment options

Online Only

Conveying & Hoisting Solutions does not have a storefront open to the general public. However, you may select the Click & Collect option at checkout. We'll notify you when its ready for pickup
Learn more

  • Description

  • Specifications

These safety pin bow shackles are most commonly used for lifting applications, providing more permanent connections to chain, wire rope and other rated fittings within the marine, agricultural, mining and engineering industries. Suitable for equipment that may vibrate to ensure pin will not dislodge during use. The safety pin allows the pin to rotate during loading conditions.

These safety pin bow shackles are most commonly used for lifting applications, providing more permanent connections to chain, wire rope and other rated fittings within the marine, agricultural, mining and engineering industries. Suitable for equipment that may vibrate to ensure pin will not dislodge during use. The safety pin allows the pin to rotate during loading conditions.

  • Conforms to AS2741 manufactured from Grade S material in bow configuration with safety pin hot dipped galvanised..
  • Marked with working load limit in tonnes, quality grade, batch numbered, nominal size in millimetre and supplier identification.
  • Proof tested to 2 x working load limit, with a minimum break force of 6 x working load limit
  • Pin colour may vary
  • Highly suitable for lifting applications.

Additionally, these shackles, made of high-quality materials and construction. You can rely on it to stand up to even the most demanding jobs. Apart from that, the galvanised finish protects against corrosion, making them ideal for use in harsh environments, as well. Their versatility makes them ideal for a wide range of applications within the marine, agricultural, mining and engineering industries.

Details
Product Code
Product Code
This unique code helps you pinpoint the exact item you need in our inventory
503510
Weight
Weight
The measurement that shows how heavy the product is. Useful to know for handling, shipping, and setup purposes.
0.16 kg
Finish
Finish
Material: Identifies what the product is made from. This info helps you gauge its look, feel, and longevity.
Galvanised
Quantity
Quantity
A list of all the items included in the package
One Item
Performance
Min. Breaking Strength
Min. Breaking Strength
This denotes the minimum force required to cause failure or breakage in a material or component, such as cables, ropes, or straps. Expressed in kilograms (kg), it serves as a critical safety indicator, ensuring that materials are selected and used within their strength limits. Understanding this value is key to preventing accidents and ensuring the integrity of lifting or securing operations
6 x WLL
Compliance
Conformity
Conformity
Indicates the extent to which a product or component adheres to established standards and regulations, including Australian and international norms. This encompasses aspects like design, materials, performance, and safety. Conformity ensures that the product is suitable for its intended use and meets the quality and safety requirements necessary for its application. Regularly assessing conformity is essential for maintaining compliance and reliability
AS/NZS 2741
Markings
Markings
This refers to the specific identifiers and symbols printed or engraved on the product. These may include the model number, serial number, safety symbols, and compliance marks that ensure the product meets industry standards and regulations. Check these markings for important information about the product's origin, certification, and proper use.
Batch Number, Grade, Nominal Size in Millimetre, Manufacturer, WLL in tonne
Test Certificate
Test Certificate
A Test Certificate is an official document provided by a certified testing agency that verifies the product has been rigorously tested and meets all applicable standards and quality requirements. It ensures the product's reliability, safety, and compliance with industry regulations. This certificate is crucial for ensuring confidence in the use and durability of the product
Available on request
Brand Information
Brand
Austlift or Sunny Lifting, based on availability
