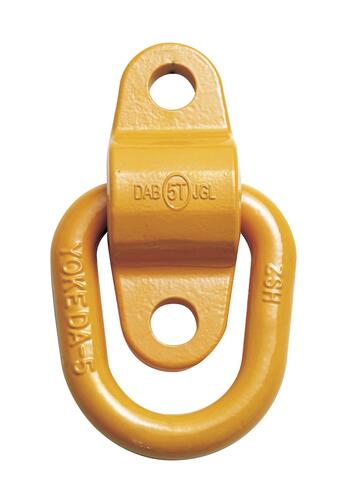

Yoke Bolt on Tie-Down Point

Yoke Bolt on Tie-Down Point

Descriptive alt text
Save $21.75 Save $9.30
$62.00
$62.00 - $145.00
$62.00
$52.70
$52.70 - $123.25
$52.70
Availability:
In stock
Availability:
In stock
Availability:
In stock

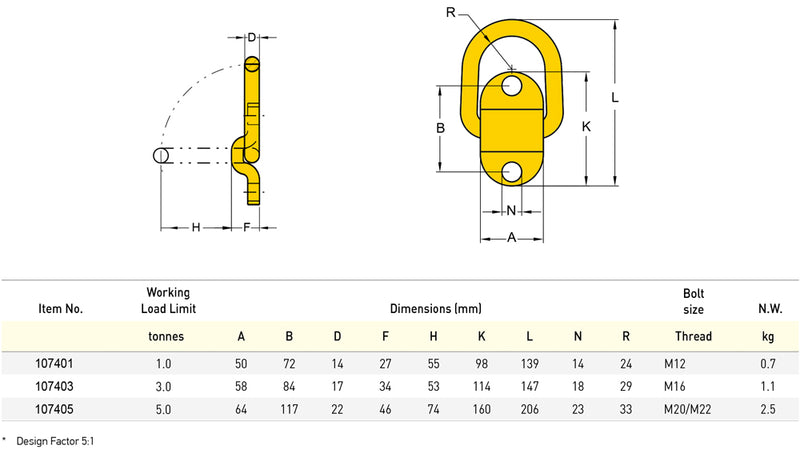

Product Code: 107401
WLL: 1T/M12

Online Only

Conveying & Hoisting Solutions does not have a storefront open to the general public. However, you may select the Click & Collect option at checkout. We'll notify you when its ready for pickup
Learn more

  • Description

  • Specifications

  • Key Points

  • Designed with spring, stop at any angle supplied without bolt
  • Pivots 180° and allows side load lifting.
  • Manufactured from forged alloy steel, quenched and tempered.
  • Manufactured and tested in accordance with EN1677-1.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts are traceable to Test Certification.
  • Supplied without bolts; usage of Grade 10.9 or Grade 12.9 bolts is recommended.
  • Proof tested to 2.5 times the WLL.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
