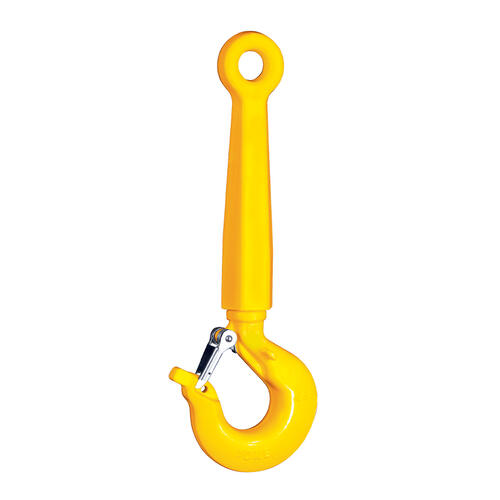

ROV Shank Hook Yoke 5.4t (Code 115054)

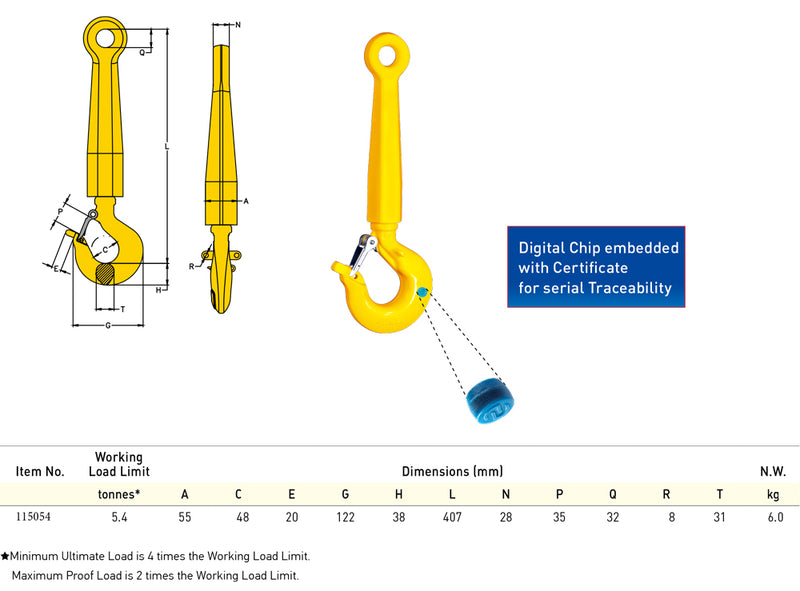

ROV Shank Hook Yoke 5.4t (Code 115054) dimension reference diagram — A, C, E, G, H, L, N, P, Q, R, T
ROV Shank Hook Yoke 5.4t (Code 115054)
ROV Shank Hook Yoke 5.4t (Code 115054) dimension reference diagram — A, C, E, G, H, L, N, P, Q, R, T

ROV Shank Hook Yoke 5.4t

Descriptive alt text
$877.00 - $877.00
$877.00
$877.00 - $877.00
$877.00
Availability:
In stock
Product Code: 115054

Online Only

Conveying & Hoisting Solutions does not have a storefront open to the general public. However, you may select the Click & Collect option at checkout. We'll notify you when its ready for pickup
Learn more

  • Description

  • Specifications

  • Key Points

ROV: Remotely Operated Vehicle. Grade 80 shank hook yoke designed specifically for subsea ROV lifting applications.

  • Forged alloy steel, quenched and tempered.
  • Designed specifically for ROV application.
  • Individually stamped with the Working Load Limit.
  • Shackle bows are painted yellow to ensure ease of sight in water.
  • Digital chip embedded with certificate for serial traceability.

Working Load Limit: 5.4 t • Net Weight: 6.0 kg
Minimum Ultimate Load is 4 × the Working Load Limit. Maximum Proof Load is 2 × the Working Load Limit.

  • Designed specifically for ROV (Remotely Operated Vehicle) applications
  • Forged alloy steel, quenched and tempered
  • Individually stamped with the Working Load Limit
  • Shackle bows painted yellow for ease of sight in water
  • Digital chip embedded with certificate for serial traceability
