Engine/Gearbox Lifting Bolt on Bracket

In stock
Product Code: 103712
(10)
  • Bolt-on engine lifting bracket
  • Large eye with low-clearance design
  • Accepts metric and imperial bolts
$16.00 inc. GST
Size
Online Only

Conveying & Hoisting Solutions does not have a storefront open to the general public. However, you may select the Click & Collect option at checkout. We'll notify you when it's ready for pickup.

Learn more

Design

  • Low carbon alloy material
  • Large eye size for utilized applications
  • Link brackets require less clearance than a standard eye bolts and makes placement/ alignment much faster and easier
  • Marked with product ID, grade, working load limit and manufacture ID

Testing

  • Proof tested at 2 x WLL as per AS3776
  • Destructive tested at 4 x WLL
  • Must be used with grade 10.9 bolts or higher
  • Testing certificates available upon request

Applications
Designed for use with engine load levellers and a variety lifting slings.

  • Angled brackets bolt directly to component being lifted
  • Perfect for engines
  • Transmissions
  • Swing Gears and Bearings
  • Radiators and more


Brackets accept Metric and Imperial diameter bolts.

We aim to process orders within 1–3 business days. Made-to-order and special-order products may have longer lead times, as shown in the product details.

Delivery options and costs are calculated at checkout. Free shipping applies only where stated on the product.

For full details, see the Shipping Policy linked in our footer.

For warranty information, please see the Warranty page linked in our footer. If you need assistance with a product, contact our online store team on 02 9707 2797 and select option 2.

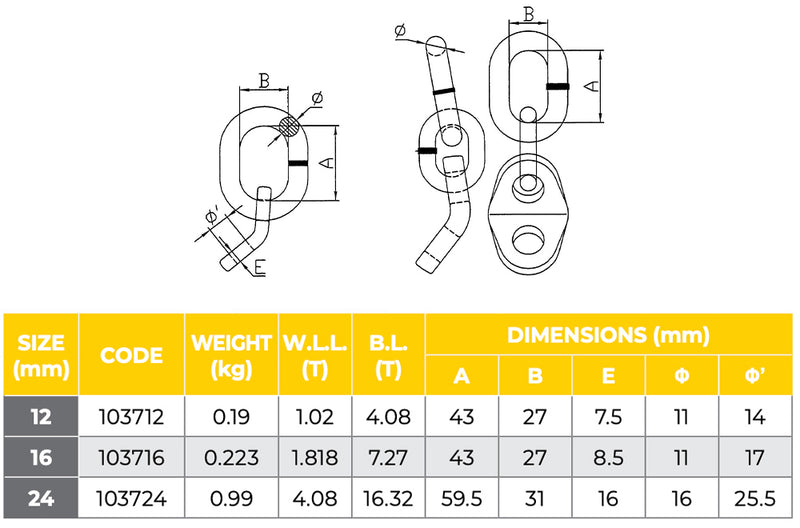

Product specifications

Select your size from the options above to see the matching specifications.

Buy in bulk

Variant Quantity Price Total
12mm/WLL 1.02T 103712
$16.00 inc. GST
$0.00
$16.00 inc. GST
$0.00
16mm/WLL 1.81T 103716
$18.00 inc. GST
$0.00
$18.00 inc. GST
$0.00
24mm/WLL 4.08T 103724
$42.00 inc. GST
$0.00
$42.00 inc. GST
$0.00
