The G80/G100 Safety Hook Trigger Kit is a replacement trigger assembly for the Austlift Grade 80 and Grade 100 self-locking safety hooks. Designed to suit LE, LC and LS type self-locking hooks, this repair kit restores the locking trigger mechanism on worn or damaged hooks and helps keep lifting and chain sling components in safe working order. Trigger kits are available to suit chain sizes from 6 mm through to 32 mm.

Key Features

• Replacement trigger kit for Grade 80 and Grade 100 self-locking safety hooks
• Suits LE, LC and LS type self-locking hooks
• Available to suit chain sizes from 6 mm to 32 mm

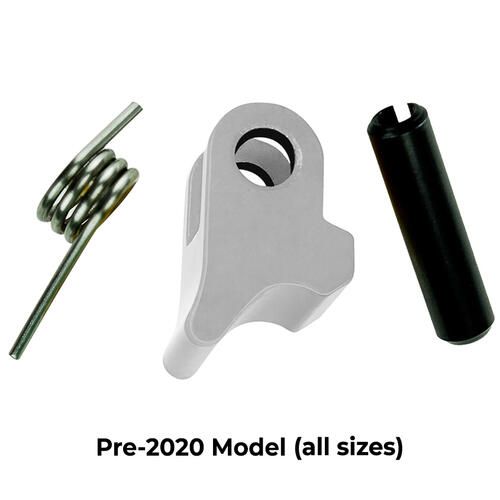

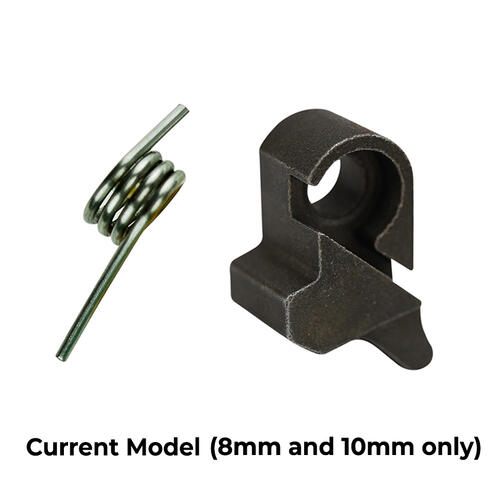

• Current and pre-2020/2021 trigger versions available for common sizes
• Designed for straightforward replacement of a worn or damaged trigger

Technical Specifications

• Component type: Self-locking hook trigger repair kit
• Suitable hook types: LE, LC and LS self-locking hooks
• Compatible grades: Grade 80 and Grade 100

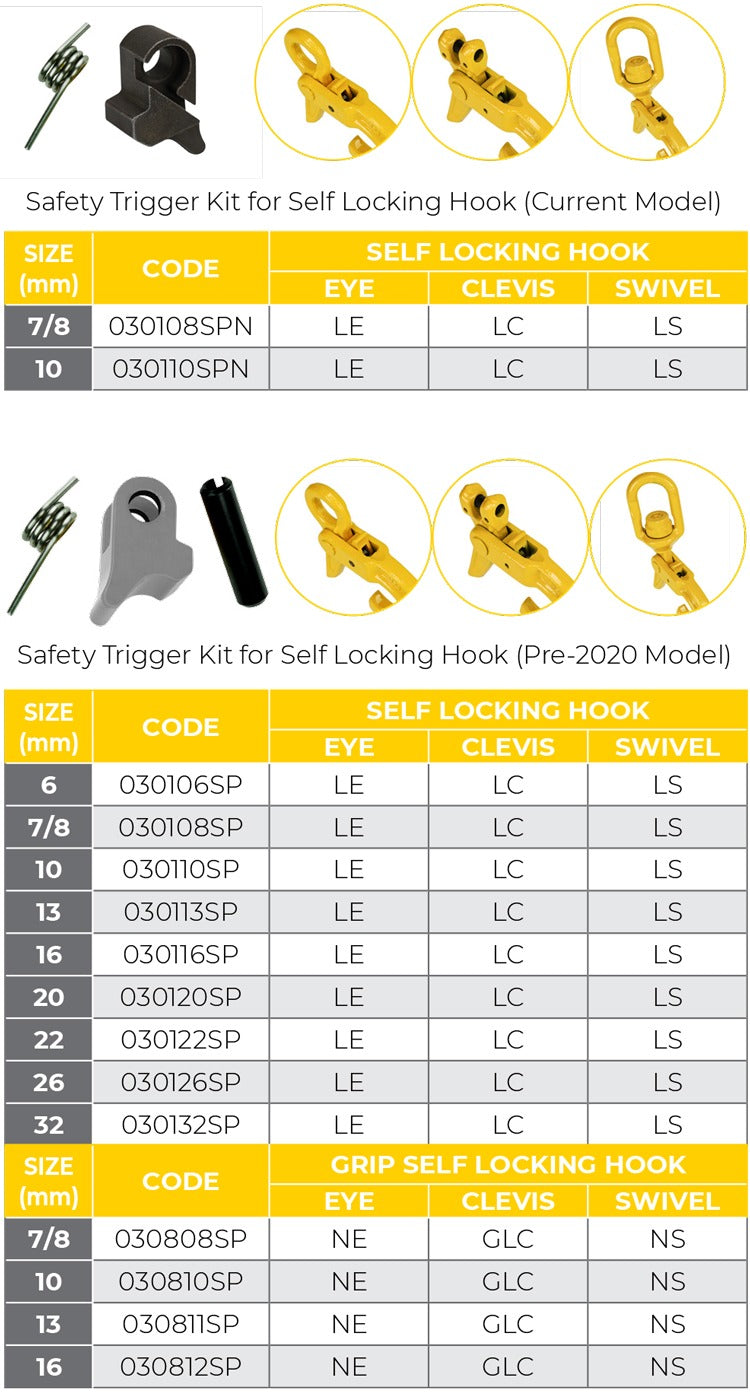

• Chain sizes: 6, 8, 10, 13, 16, 20, 22, 26 and 32 mm

Typical Applications

• Servicing and repair of Grade 80 and Grade 100 chain sling assemblies
• Replacing worn or damaged triggers on self-locking hooks
• Ongoing maintenance of lifting and load-restraint hook fittings

Notes

• Select the trigger kit to match your hook's chain size and model.
• This kit is a replacement component only and does not carry an independent working load limit. The working load limit is determined by the hook and assembly it is fitted to.
• Any repaired lifting component should be inspected and returned to service by a competent person in accordance with the relevant standards.
