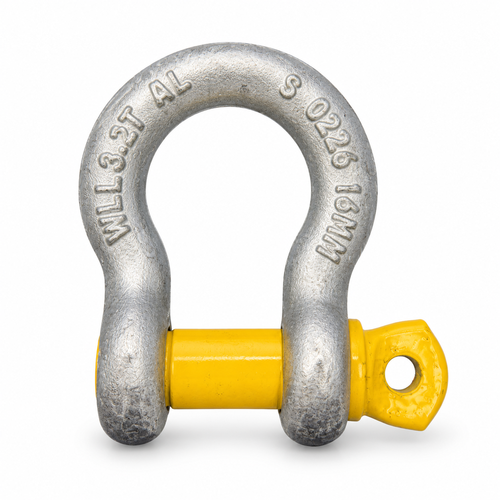

Bow Shackle Grade 'S' Screw Galvanised Lock Tight

Descriptive alt text
$10.00 - $10.00
$10.00
$10.00 - $10.00
$10.00
Availability:
In stock
Product Code: 503116

Check shipping times by postcode

Online Only

Conveying & Hoisting Solutions does not have a storefront open to the general public. However, you may select the Click & Collect option at checkout. We'll notify you when its ready for pickup
Learn more

  • Description

  • Specifications

  • Key Points

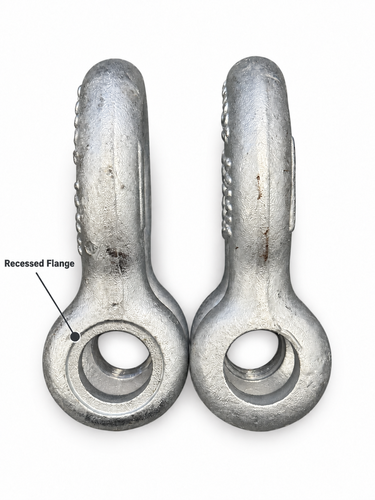

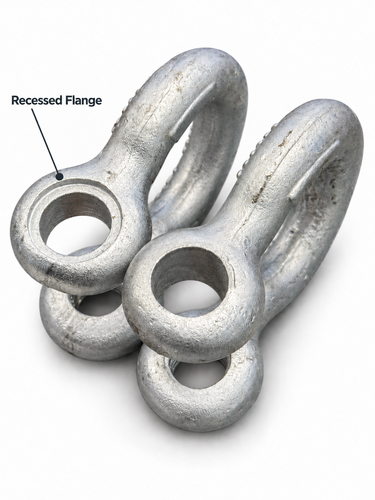

These Lock Tight Grade S bow shackles features a screw pin with a larger flange that seats into a matching recess in the shackle body. The additional pin-to-body contact point helps locate the pin and control movement under load.

  • Working load limit: 3.2t
  • Product code: 503116
  • Manufactured from Grade S material and conforms to AS2741.
  • Proof loaded to 2 × WLL; minimum breaking force 6 × WLL.
  • Marked with WLL, quality grade, batch number, nominal size and supplier identification.
  • Suitable for lifting applications. Test certificates available on request.
  • Unit: each
  • Recessed flange screw pin
  • Proof tested to 2 x WLL
  • Minimum breaking strength 6 x WLL
