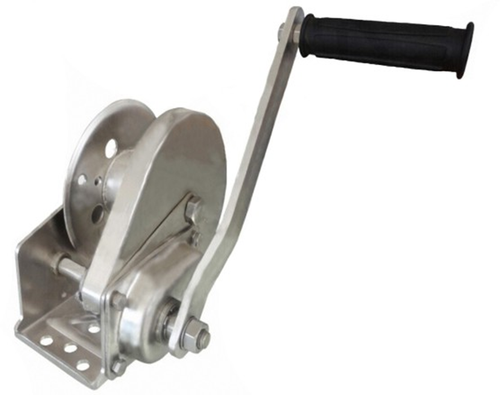

Austlift stainless steel hand brake winch with manual crank handle and rope drum

Stainless Steel Hand Brake Winch

Descriptive alt text
$338.00 - $742.00
$338.00
$338.00 - $742.00
$338.00
Availability:
In stock
Availability:
In stock
Availability:
Out of stock
Product Code: 147250

Check shipping times by postcode

Online Only

Conveying & Hoisting Solutions does not have a storefront open to the general public. However, you may select the Click & Collect option at checkout. We'll notify you when its ready for pickup
Learn more

  • Description

  • Specifications

  • Key Points

The stainless steel hand brake winch provides manual pulling and lifting in a compact unit. Grade 304 stainless steel construction offers corrosion resistance, while the dual-action brake holds the load in position.

Key Features

  • Corrosion-resistant Grade 304 stainless steel
  • Manual operation for pulling and lifting loads
  • Dual-action brake for holding the load in position
  • Compact, lightweight and robust construction
  • Enclosed mechanical components to help minimise damage
  • Rope-to-drum fixing clamp provided
  • Single-speed operation

Technical Specifications

Brand: Austlift
Material: Grade 304 stainless steel
Operation: Manual hand crank
Unit: Each

SKU Pulling capacity (kg) Lifting capacity (kg) Test load (kN) Transmission ratio Speeds Product weight (kg)
147250 545 272.5 8 4.2:1 1 3.7
147280 820 410 12 5:1 1 7.7
147312 1200 600 17.5 10:1 1 10.1

Typical Applications

Manual pulling and lifting of loads within the selected model's rated capacity.

Compliance and Documents

The supplied Austlift specification sheet states compliance with AS 1418.2. Austlift's product page also lists CE approval with certification. A separate certificate or operating manual was not supplied.

  • Corrosion-resistant Grade 304 stainless steel construction
  • Suitable for pulling or lifting within the selected capacity
  • Dual-action brake holds the load in position
  • Compact, lightweight and robust construction
  • Enclosed mechanical components help minimise damage
  • Rope-to-drum fixing clamp provided
  • Listed by Austlift as CE approved with certification
  • Austlift specification sheet states compliance with AS 1418.2
  • Single-speed manual winch operation
